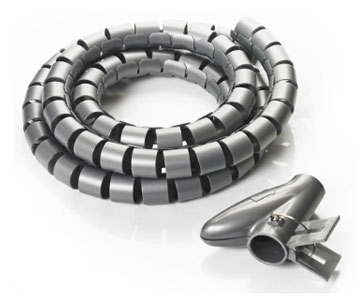

Spiral Tubes

Product Description

As the protection of wire insulation from the wear and use, and to improve the esthetics of wire bending.

Material: Made from PE

Usage: Fix one end with safety belt first, then circle the wires clockwise to make them tighten

Application: A protection wear for electric wires, and make them insulation and look nice. Packing: 10M/roll

Enquire Now

Detail Information of Spiral Tubes

Usage	Use the length you need, fix the one side, and bind the bundled tie by clockwise to make them tighten
Feature	The product is easy to disassemble; the winding force will not be weaken when you re-use it.
Surface colour	grey, white, red, yellow, green etc...other colour customized
Supply Ability	2 x 20 feet containers per week
Packaging Details	A. Common Packing:1bag + Blister +Label+ export carton
	B. Common Packing:1bag+inner box + label +export carton
	C. Customized Packing: OEM Label, PDQ etc
HS Code	3926909090
Origin Country	Mumbai, Maharashtra

Overview

Type: Spiral Wrapping bands.
Materials: PE. We are use 100% material, Never used
Features:
1. Flexible construction encables bands to follow wire ways easily.
2. Durable, reusable with retained spiral strength.
3. fix one end with safety belts first, then circle the wires clockwise to nake them tighen.
4. Expand spiral range almost without limit, easly applied to electric harmess.
Usage:fix one end with safety belts first, then circle the wires clockwise to nake them tighen.
Standard color: nature white As well as the other can be designed according to customer request.

Technical Information

Item No.	Inner diameter	Outer diameter	Span size	Cable range	Length	Packing
	D	d	W
	mm	mm	mm	mm	mm	N.W.
TQ 237	2	3	5	2-20	55
TQ 238	2	4	5	3-30	50
TQ 239	3	5	6	3-40	45
TQ 240	4	6	7	4-45	45
TQ 241	6	8	10.8	6-60	35
TQ 242	7.5	10	11.4	7.5-60	23
TQ 243	9	12	13.9	9-65	17
TQ 244	11.5	14	14	10-70	13
TQ 245	13.5	16	15	12-75	10
TQ 246	15	18	18.2	14-85	8
TQ 247	17.5	20	118.5	15-100	7
TQ 248	19.5	22	20	20-130	6.5
TQ 249	22.5	25	20	22-135	6
TQ 250	27	30	20	27-150	5
