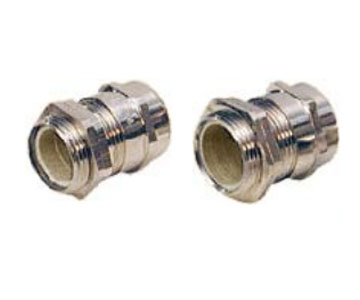

CW Brass Glands are most suitable for outdoor installation of Steel Wire Armored (SWA), Plastic & Rubber sheathed cables. Knurled armour/lock produces a low resistance earth clamp. Available in 2 part armour/earth lock.
CW Cable Glands
| Code | Gland Size (mm) | Entry Thread (mm) | Cable Inner Sheath (mm) Max – Min. | Cable Outer Sheath (mm) Max – Min. | |
|---|---|---|---|---|---|
| TQ 178 | 20/16 | 20 | 15 | 8.6 – 3.5 | 13.2 – 8.4 |
| TQ 179 | 20S | 20 | 10 | 11.5 – 8.0 | 15.8 – 12.9 |
| TQ 180 | 20 | 20 | 10 | 13.5 – 11.0 | 20.8 – 15.5 |
| TQ 181 | 25 | 25 | 10 | 19.5 – 13.0 | 27.2 – 20.3 |
| TQ 182 | 32 | 32 | 10 | 25.5 – 19.0 | 33.5 – 26.7 |
| TQ 183 | 40 | 40 | 15 | 32.0 – 25.0 | 39.9 – 33.0 |
| TQ 184 | 50S | 50 | 15 | 37.0 – 31.5 | 46.3 – 30.4 |
| TQ 185 | 50 | 50 | 15 | 43.0 – 36.5 | 52.6 – 45.7 |
| TQ 186 | 63S | 63 | 15 | 50.0 – 42.5 | 58.9 – 52.1 |
| TQ 187 | 63 | 63 | 15 | 55.0 – 48.5 | 65.3 – 58.4 |
| TQ 188 | 75S | 75 | 15 | 61.0 – 54.5 | 71.6 – 64.8 |
| TQ 189 | 75 | 75 | 15 | 67.0 – 60.5 | 78.0 – 71.1 |
| TQ 190 | 90 | 90 | 15 | 79.0 – 60.0 | 90.0 – 65.0 |
