These glands are made of brass and are used with all types of unarmored cables. They can also be used on plastic or rubber sheathed cables for indoor and outdoor installations.

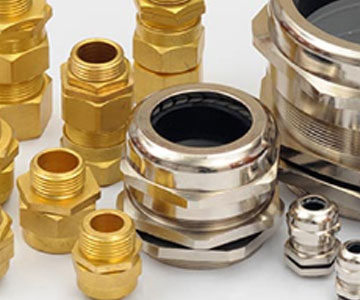

A1 / A2 Cable Glands
| Code | Gland Size | Entry Thread Dia(mm) | Min Length (mm) | Cable Range | Earth Tag Ref | Shroud Ref |
|---|---|---|---|---|---|---|
| TQ 165 | 20/16 | 20 | 15 | 8.6 – 3.5 | ET20 | SA 16 |
| TQ 166 | 205 | 20 | 10 | 11.5 – 8.0 | ET20 | SA 205 |
| TQ 167 | 20 | 20 | 10 | 13.5 – 11.0 | ET20 | SA 20 |
| TQ 168 | 25 | 25 | 10 | 19.5 – 13.0 | ET 25 | SA 25 |
| TQ 169 | 32 | 32 | 10 | 25.5 – 19.0 | ET 32 | SA 32 |
| TQ 170 | 40 | 40 | 15 | 32.0 – 25.0 | ET 40 | SA 40 |
| TQ 171 | 50S | 50 | 15 | 37.0 – 31.5 | ET 50 | SA 50S |
| TQ 172 | 50 | 50 | 15 | 43.0 – 36.5 | ET 50 | SA 50 |
| TQ 173 | 63S | 63 | 15 | 50.0 – 42.5 | ET 63 | SA 63S |
| TQ 174 | 63 | 63 | 15 | 55.0 – 48.5 | ET 63 | SA 63 |
| TQ 175 | 75S | 75 | 15 | 61.0 – 54.5 | ET 75 | SA 75S |
| TQ 176 | 75 | 75 | 15 | 67.0 – 60.5 | ET 75 | SA 75 |
| TQ 177 | 90 | 90 | 15 | 79.0 – 60.0 | ET 90 | SA 90 |
