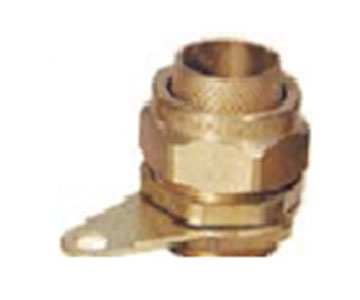

BW Brass Glands are most suitable for all type of Steel Wire Armored (SWA), cables where no seal is required on cables - Inner or outer sheating. Knurled armour/lock produces a low resistance earth clamp. Available in 2 part (Without lock-ring) and three parts (with lock rings).
| Code | Gland Size (mm) | Entry Thread (mm) | Cable Inner Sheath (mm) Max – Min. | Cable Outer Sheath (mm) Max – Min. | |
|---|---|---|---|---|---|
| TQ 191 | 20S | 20 | 10 | 11.6 – 8.0 | 15.8 – 12.9 |
| TQ 192 | 20L | 20 | 10 | 13.9 – 11.0 | 20.8 – 15.5 |
| TQ 193 | 25 | 25 | 10 | 19.9 – 13.0 | 27.2 – 20.3 |
| TQ 194 | 32 | 32 | 10 | 26.2 – 19.0 | 33.5 – 26.7 |
| TQ 195 | 40 | 40 | 15 | 32.1 – 25.0 | 39.9 – 33.0 |
| TQ 196 | 50S | 50 | 15 | 38.1 – 31.5 | 46.3 – 39.4 |
| TQ 197 | 50 | 50 | 15 | 44.0 – 36.5 | 52.6 – 45.7 |
| TQ 198 | 63S | 63 | 15 | 50.0 – 42.5 | 58.9 – 52.1 |
| TQ 199 | 63 | 63 | 15 | 55.9 – 48.5 | 65.3 – 58.4 |
| TQ 200 | 75S | 75 | 15 | 61.9 – 54.5 | 71.6 – 64.8 |
| TQ 201 | 75L | 75 | 15 | 67.9 – 60.5 | 78.0 – 71.1 |
| TQ 202 | 90 | 90 | 15 | 69.9 – 66.0 | 90.0 – 65.0 |
